Description

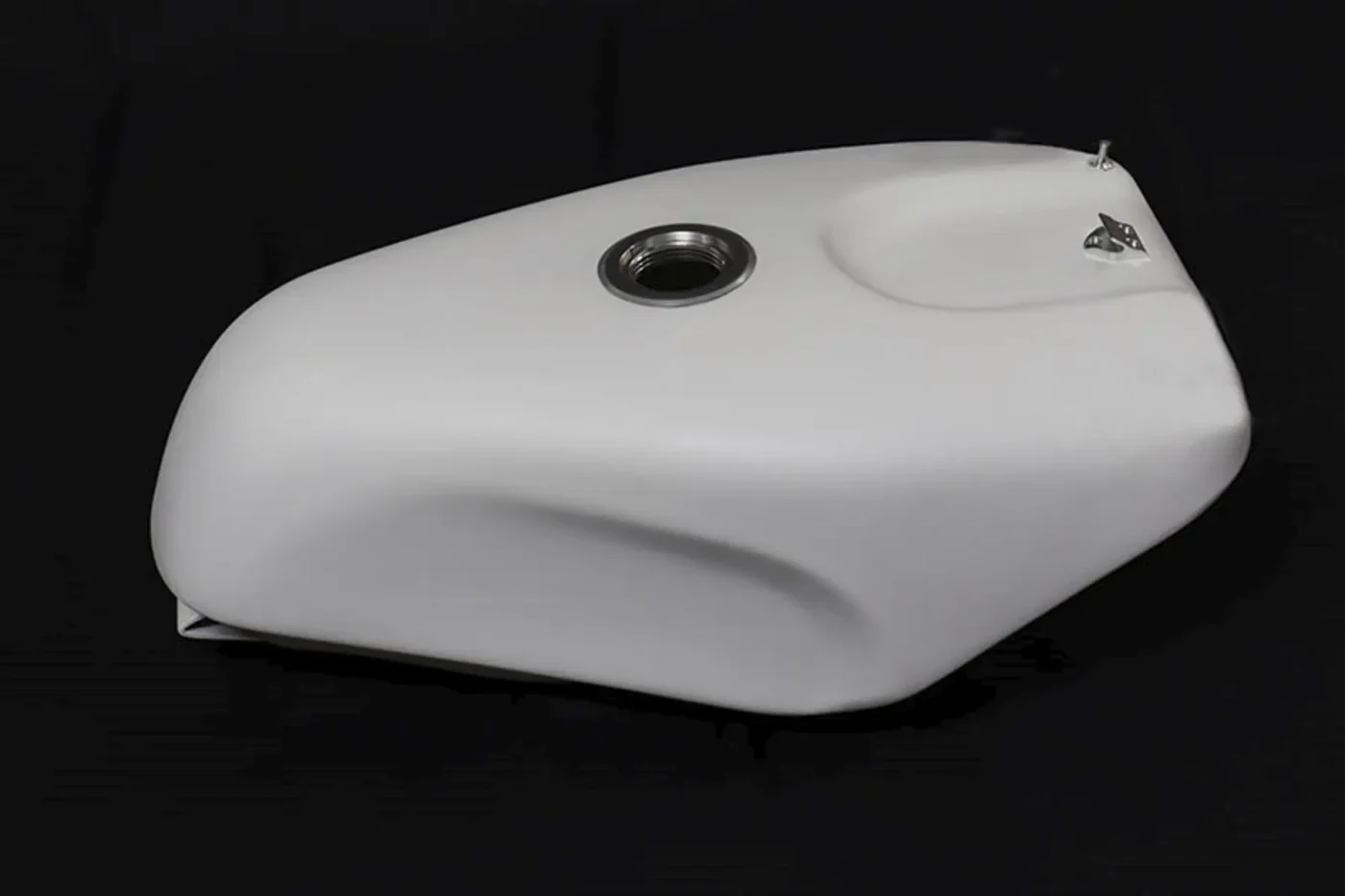

Fuel Tank, GRP, RS250R NX5 (Early Type)

Top quality reproduction of the early non ram air version NX5 fuel tank in GRP

Using specially formulated epoxy resin for fuel resistance, this tank has been tested with a range of fuels from 95 unleaded pump fuel, Avgas 100LL to E20 (20% ethanol).

Laminated with a Kevlar layer for abrasion and puncture resistance, this fuel tank is both strong and light ( 2.25 kg).

Unlike most aftermarket fuel tanks, this one is designed so that there is no compromise with installation and through use of high quality CNC machined aluminium inserts and following the stock shape.

The following stock parts can be used (not included):

•  Fuel Cock
•  Breather
•  Front strap
•  Stock mounting rubbers
•  Filler cap and seal

IMPORTANT: Please note that this fuel tank, for ease of manufacture, uses the later flush fitting NX5 type filler cap. This can be purchased from HRC (part numbers 17521-NX4-680 for filler cap and 17515-NX5-770 for seal) or we can supply our own TYGA version (Cap: TYLY-0178A, Seal: BPSY-0238). Note the filler cap and the above list of parts are not included with the fuel tank and need to be purchased separately.
