Description

Racing Step Kit, LS125

As always, these steps are designed and produced in-house at TYGA Performance using the latest CAD software and CNC machined from top quality, aircraft grade aluminium.

They feature levers moving on ball bearings to give precise and smooth movement, and comes complete, ready to bolt on with stainless steel fasteners.

One of the many advantages over the standard footrest assembly is the ability to reverse the shift pattern without removal of the side stand, so giving the ‘racer’ set-up, on the street (See note below).

Kit includes gear selector link rod, carbon heel guards and rear brake light provision.

Pitch of hanger frame mounting holes is 87mm.

Race shift is possible but requires modification to the lower cowling for clearance.

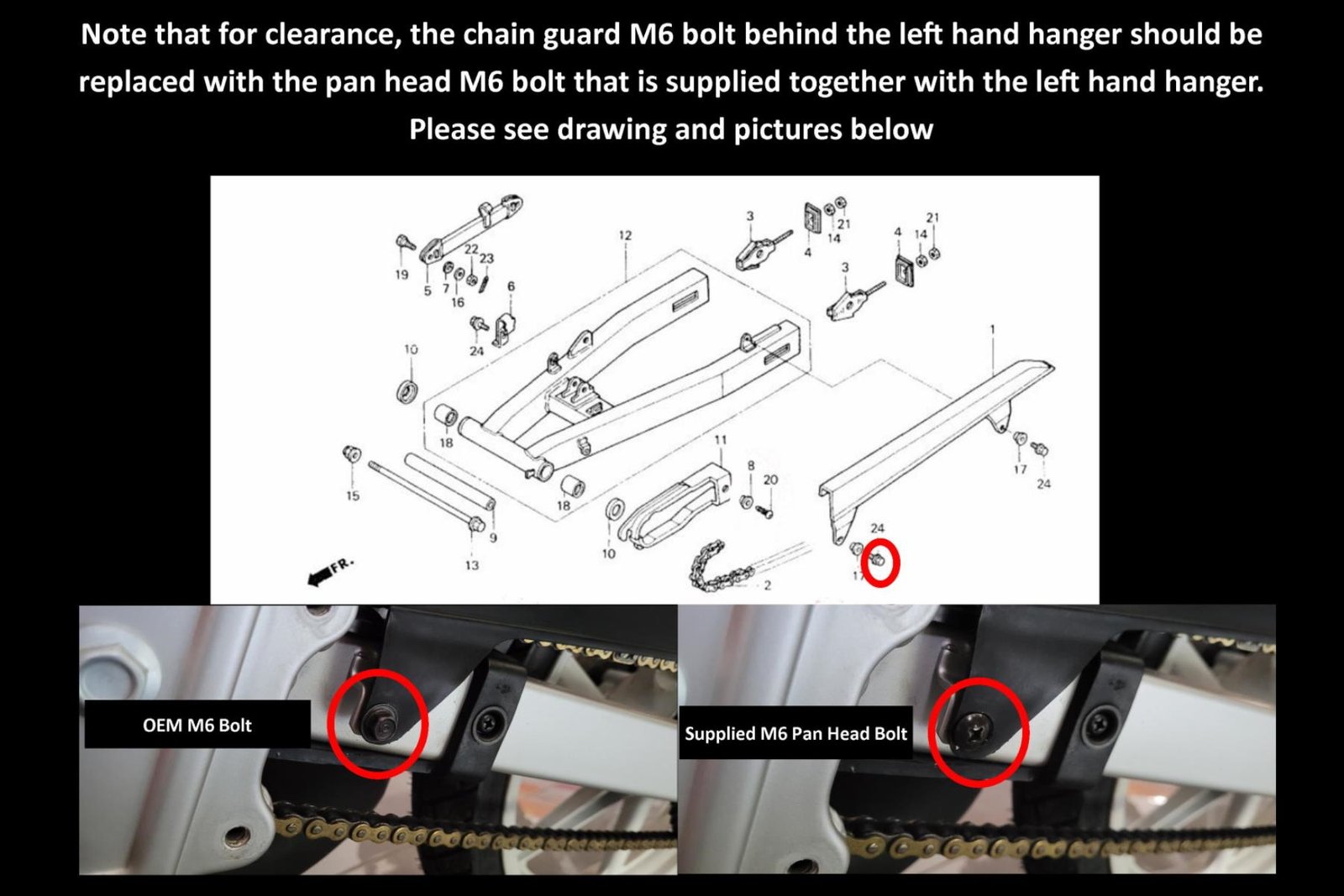

Note that for clearance, the chain guard M6 bolt behind the left hand hanger should be replaced with the pan head M6 bolt that is supplied together with the left hand hanger.
